Carton Markings: What to Put on Export Boxes Before Dispatch

When a carton leaves a supplier, its outside markings become the fastest way for a warehouse, carrier, or receiving team to identify what is inside and where it belongs. Good carton markings do not replace the commercial invoice, packing list, or transport label. They help those documents stay connected to the physical box while the shipment is handled by several people.

This guide explains what to put on an export carton, how to keep marks consistent with your order data, and how to check them before dispatch. The aim is not to cover a box with symbols. It is to make every carton identifiable, countable, and safe to handle without exposing unnecessary customer information.

Carton markings: start with the identity of the shipment

The first job of carton markings is identity. Before artwork is approved, decide which fields the receiving team must read without opening the carton. A practical set usually includes the seller or buyer reference, purchase-order number, SKU or style, variant, carton sequence, quantity per carton, and the total carton count. If the shipment has several purchase orders, show the order reference clearly enough that a receiving clerk will not have to guess.

Keep the physical label aligned with the packing list. If the packing list says cartons 1–12 contain a product in black, the cartons should use the same variant name and sequence. Do not shorten a colour or style name on the box unless the same abbreviation appears in the approved master data. A small difference such as “navy” versus “dark blue” can create a receiving question when several variants look similar.

For a mixed carton, show the mix explicitly or use a separate carton ID that points to a detailed packing list. A single label saying “assorted” is rarely enough for a warehouse that needs to count each SKU. If an accessory is packed with a main product, state the set or bundle reference rather than implying that the main SKU describes every component.

Separate carton markings from transport labels

Carton markings identify the package for handling and receiving. A carrier’s transport label may include a destination, tracking number, routing code, or service barcode. They serve different systems, so do not redesign a carrier label as if it were your own carton label.

Place your carton markings where they can be read after the carton is stacked, but leave room for the carrier label and any customs documents. Avoid covering a transport barcode with tape, stretch film, or a second sticker. If a forwarder applies the final label later, agree which surface will remain available and which information must already be printed at origin.

Use one carton label version for one shipment. Do not let a supplier print an old address, old SKU, or old carton count because the artwork file was reused. Put a revision or approval date in the internal file name and send a flattened, read-only production file after the content has been checked. The printed carton does not need a visible revision code unless your receiving process uses one.

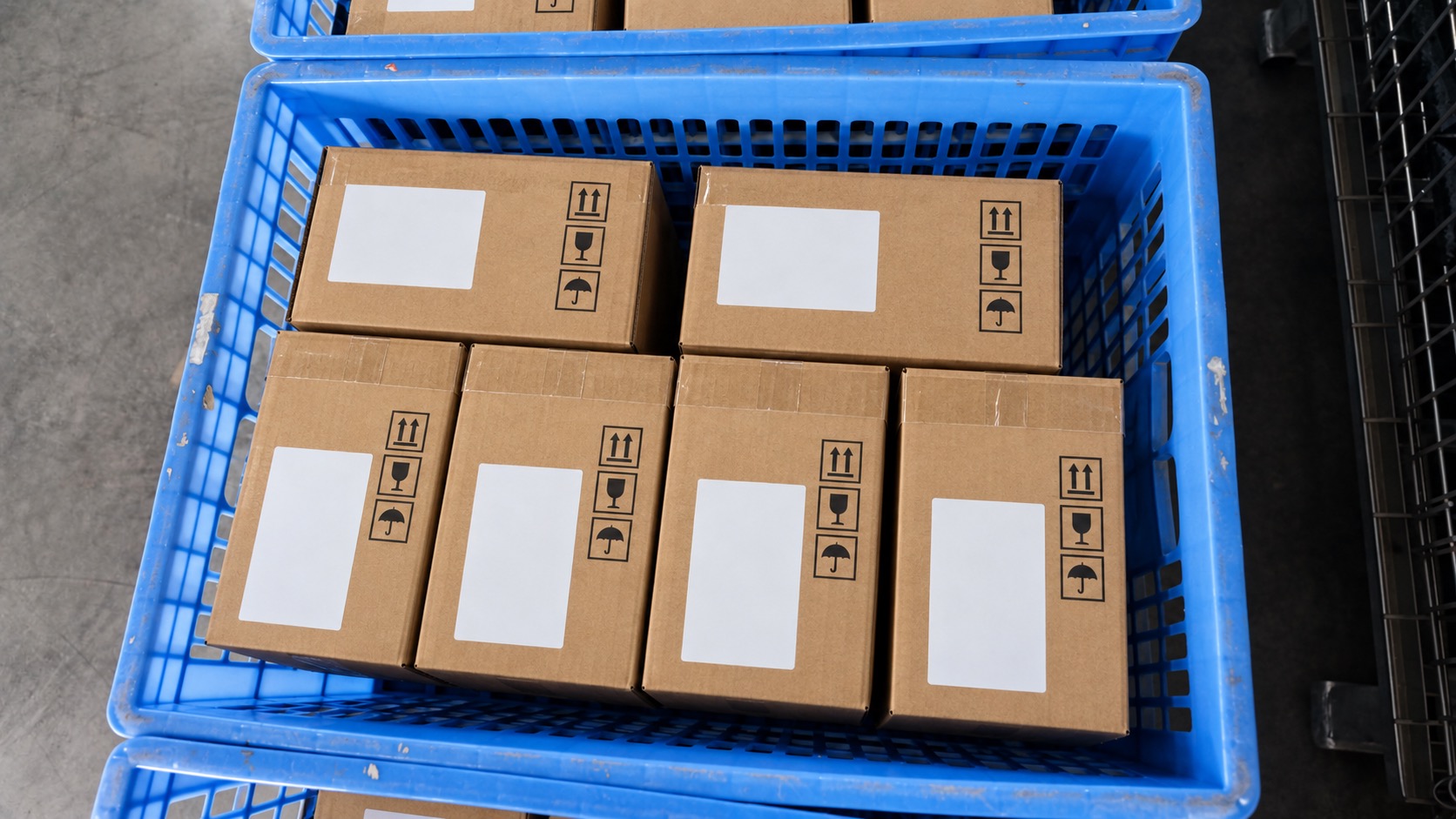

Choose shipping marks that help a person act

Shipping marks are useful when they answer a handling question. “Keep dry,” an orientation symbol, or a fragile symbol can communicate a real risk when it matches the product and packaging plan. ISO 780 describes graphical symbols used for handling and storage of packages; use the standard symbol artwork your carrier or packaging team accepts instead of drawing an ambiguous substitute. For a final quality check, QIMA’s pre-shipment inspection overview is a useful reminder to include packaging and marking checks in a defined checklist rather than relying on appearance alone.

A symbol is not a safety certification. An umbrella mark does not make a carton waterproof, and an arrows-up mark does not prevent a carton from being turned over. If the product has a regulated hazard, use the required dangerous-goods or regulatory marks through the responsible compliance process. Do not add a warning simply because it looks professional.

Keep symbols away from seams, corners, straps, and edges that may be cut or hidden. Print them at a size that remains legible on the smallest carton in the shipment. If a mark depends on colour, check it in the actual ink and carton combination; a pale symbol on kraft board can disappear under warehouse lighting.

Match carton markings to the data behind the order

The safest carton label is generated from the same confirmed data used for the packing list. At minimum, reconcile four things before printing: the product identifier, the variant, the quantity, and the carton sequence. For a replenishment order, add the purchase-order line or batch reference that lets your team separate the new goods from older stock.

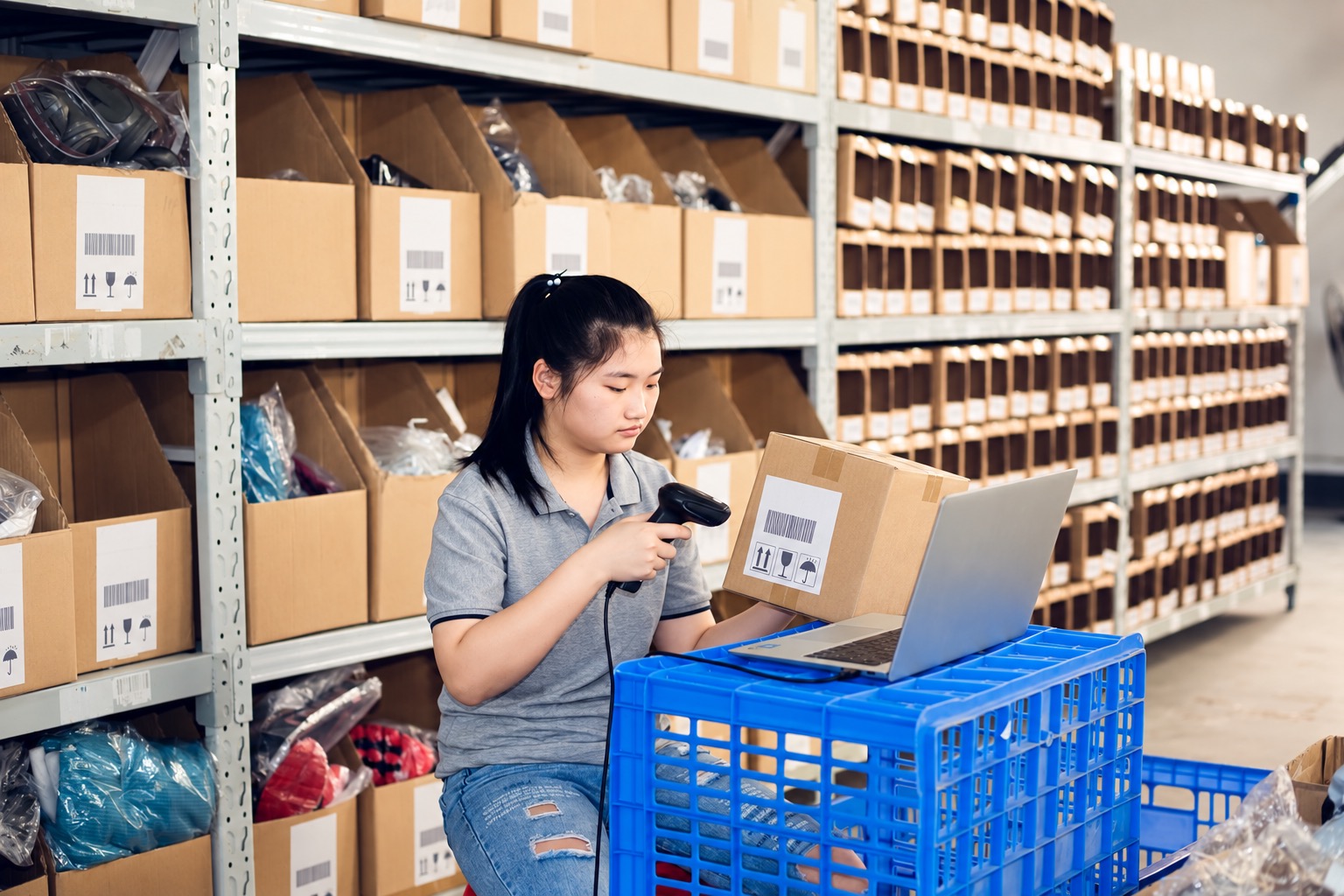

If you use barcodes, define what the code represents. A barcode may identify a SKU, a logistics unit, a carton, or a shipment. Those are not interchangeable. GS1’s Serial Shipping Container Code (SSCC) is designed to identify a logistics unit, while a product identifier identifies the trade item. Do not place a product barcode on every carton and assume a warehouse scanner can infer the carton sequence.

Use a human-readable line beside any barcode. Scanning can fail because of glare, damage, angle, or a temporary system outage. A clerk should still be able to match the carton to the packing list without opening it. Conversely, do not print a long internal database string that nobody can interpret when a scanner is unavailable.

Test the printed code on the real carton material. Verify quiet zones, contrast, print sharpness, and the distance from folds or tape. A file that scans on a clean office sheet can fail when it is reduced, wrapped around a corner, or printed on corrugated board. Record the test result with the approved label proof rather than relying on a supplier’s verbal confirmation.

Keep customer information off the outside when possible

Export packaging often passes through people who do not need to see the final customer’s name, phone number, or retail price. Put the minimum routing information required by the carrier and customs process on the outside. Keep detailed customer data in the transport label, commercial documents, or the secured order system where the responsible parties can access it.

This is especially important for multi-channel sellers. A carton moving from a China warehouse to a consolidation point is not the same as a parcel going directly to a consumer. Use the correct logistics path in the label data. Do not print a consumer delivery address on an export master carton if the final parcel label will be created later.

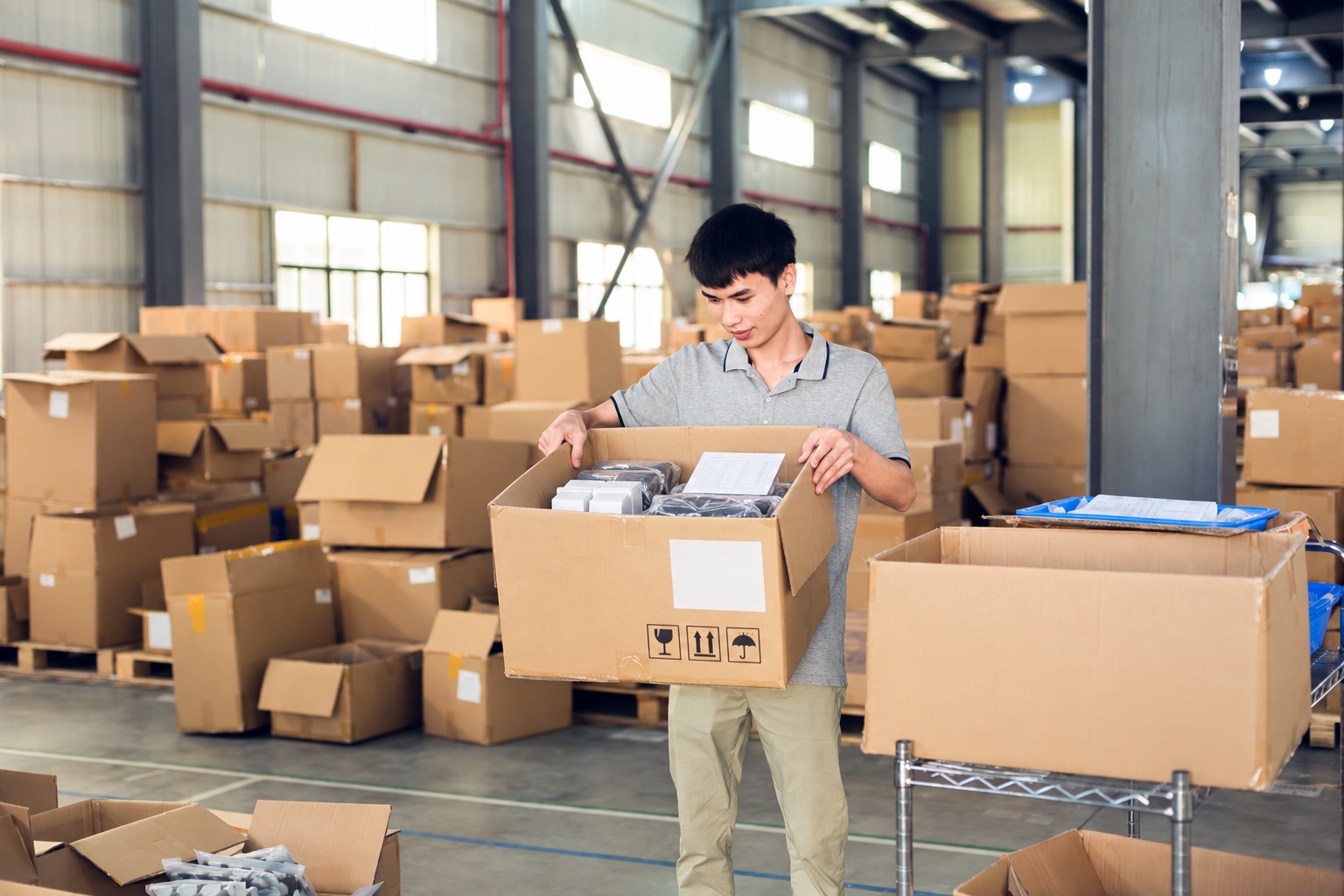

Check the carton physically, not only on screen

A label proof can look correct while the physical carton creates a problem. Ask for one printed sample on the actual carton size and board colour. Check that the label is flat, not crossing a corner, and not placed where a strap or pallet wrap will hide it. Look at the carton from the height and angle a receiving clerk will use.

Confirm the following on the sample:

• The carton ID is unique within the shipment.
• The SKU, variant, and quantity match the approved packing list.
• The carton sequence and total count are correct.
• Barcode and human-readable fields agree.
• Handling symbols face the intended orientation and remain visible.
• Labels do not cover seams, vents, closures, or carrier-label space.
• Tape, stretch film, and condensation will not obscure key information.

If the order uses several carton sizes, test the smallest and the largest. A label that fits the large export box may wrap around the small one. If a carton is likely to be reused for different variants, use a removable label only when the receiving process can reliably remove or invalidate the old mark. Stacking a new label over an old SKU creates a traceability risk.

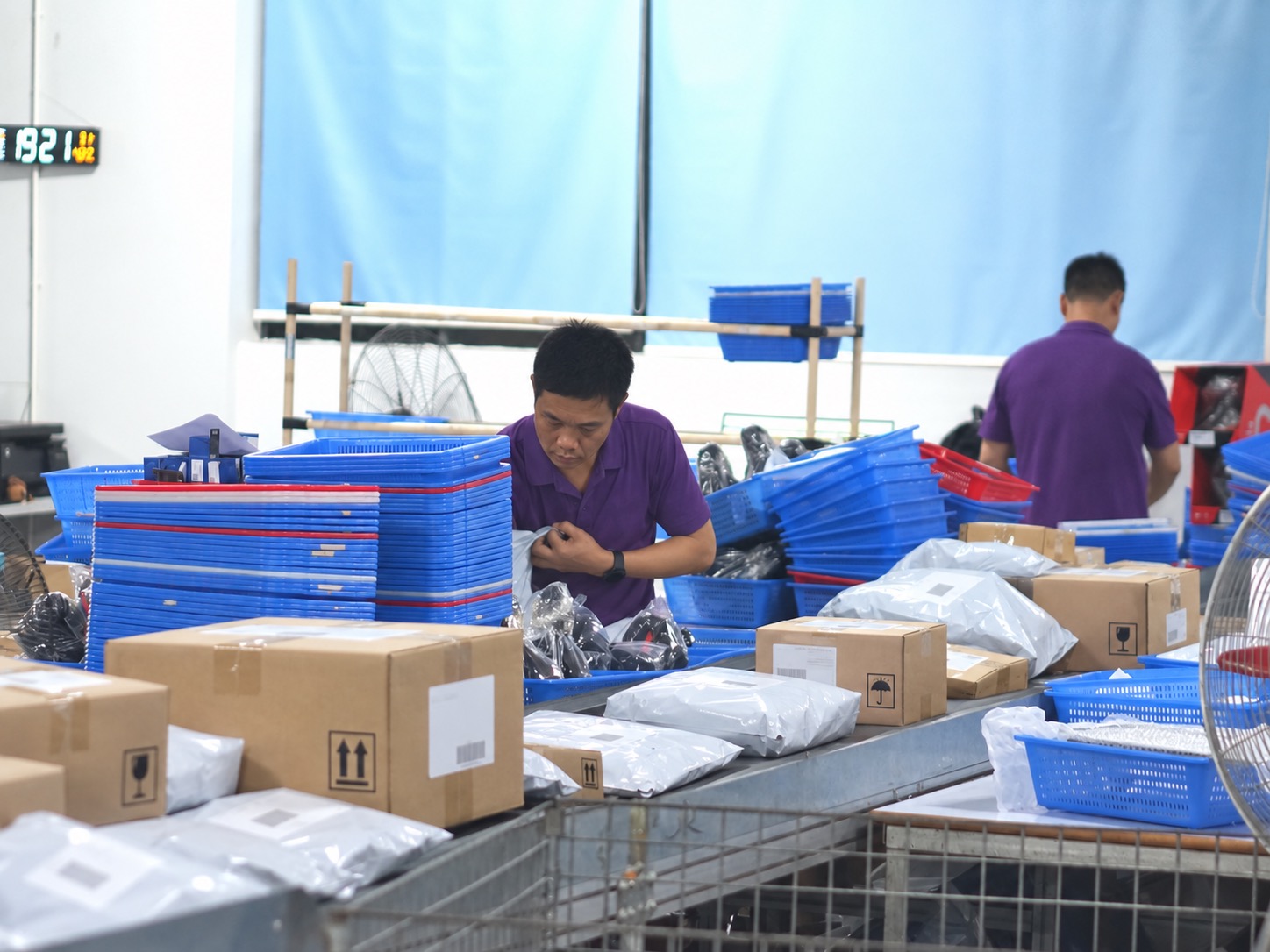

Make the final dispatch check a short decision

At dispatch, compare one carton from each SKU or variant against the packing list and the approved label proof. For a large, repetitive shipment, use a defined sample and record which cartons were checked. If the carton sequence is wrong, stop and reconcile the whole range before the freight is booked. Changing labels after loading can leave mixed evidence in the warehouse and on the transport documents.

When a discrepancy is found, classify it. A wrong destination or dangerous-goods mark is a release blocker. A slightly misplaced internal reference may be a correction before the next batch, but it should not be silently ignored if it can confuse receiving. Photograph the physical mark, note the carton ID, and link the correction to the packing list revision.

UploadToSell’s receiving and inspection workflow is the right place to connect carton checks with the warehouse handoff. If you are combining purchasing records with fulfillment preparation, keep the approved carton proof with the purchasing record rather than treating a label image as proof that the goods themselves passed inspection.

Do not let carton markings become a second source of truth

The best carton markings are boringly consistent. They repeat the approved order data, use the correct handling symbols, and make the next physical action clear. They do not promise a delivery date, claim a product is compliant without evidence, or expose more customer information than the logistics process needs.

Before the cartons leave the supplier, save the final label proof, the packing-list version, the sample-check record, and any barcode test. When the shipment arrives, compare the receiving record with the same identifiers. That small chain—from approved data to printed carton to warehouse receipt—makes a missing carton, wrong variant, or relabeled box much easier to investigate.

FAQs

What are carton markings?

Carton markings are the printed identifiers and handling symbols placed on an outer package so people and systems can identify, route, count, and handle it. They support—but do not replace—the transport label, invoice, or packing list.

Should every carton have a barcode?

Use a barcode when your receiving or fulfillment system can scan and act on it. Define whether it identifies the product, carton, logistics unit, or shipment, and print a human-readable value beside it. A barcode that nobody can interpret or reconcile adds complexity without control.

Can I print the customer’s full address on the export carton?

Only when the logistics process requires it. If a forwarder or warehouse will create the final parcel label later, keep consumer details off the master carton and use the routing information required for that stage.

What should happen when a carton label is wrong?

Hold the affected cartons, compare the physical mark with the approved packing list, correct or replace the label, and record the carton IDs. Do not cover an old SKU with a new sticker unless your process preserves the old identity and makes the change auditable.
